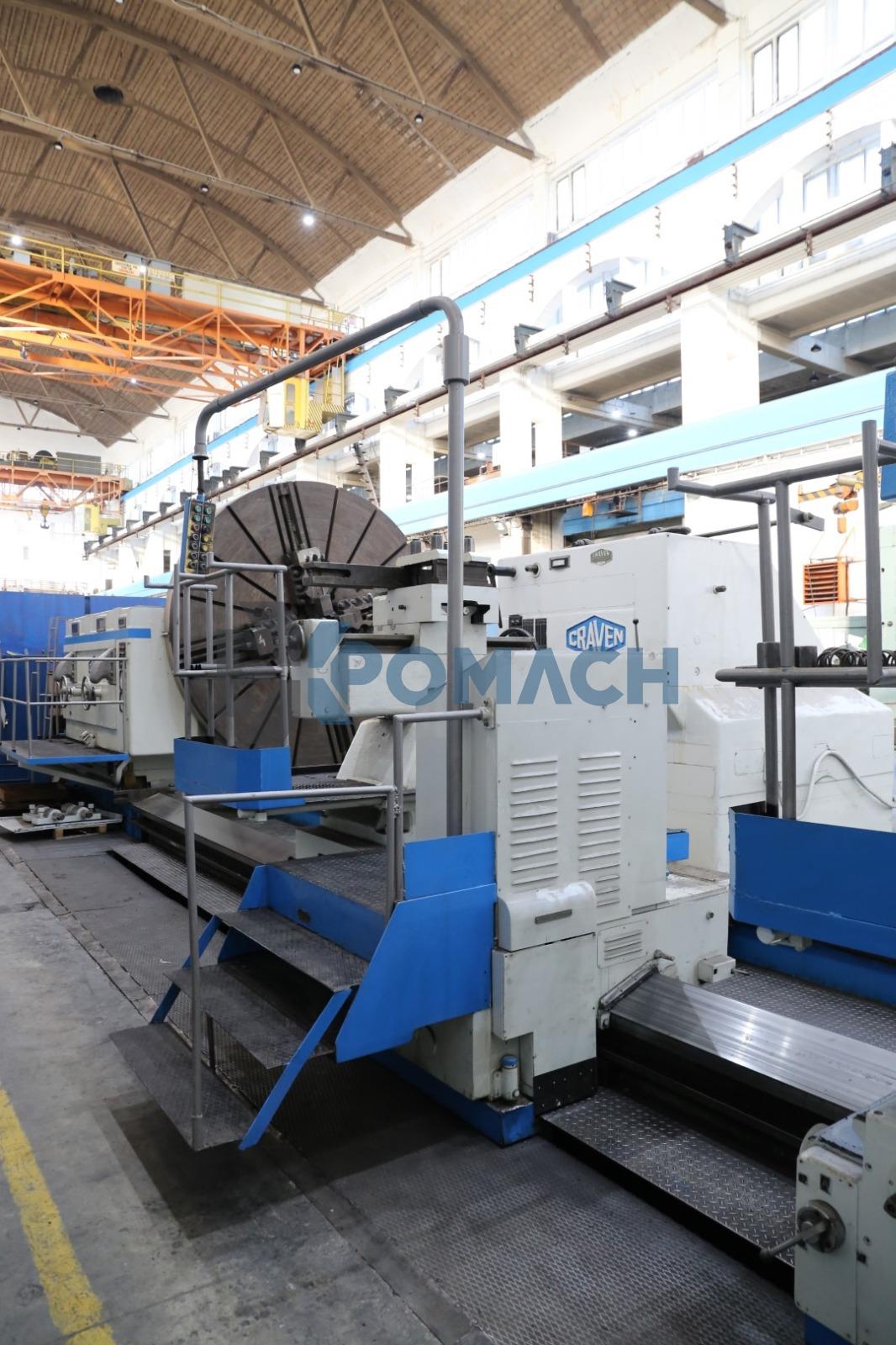

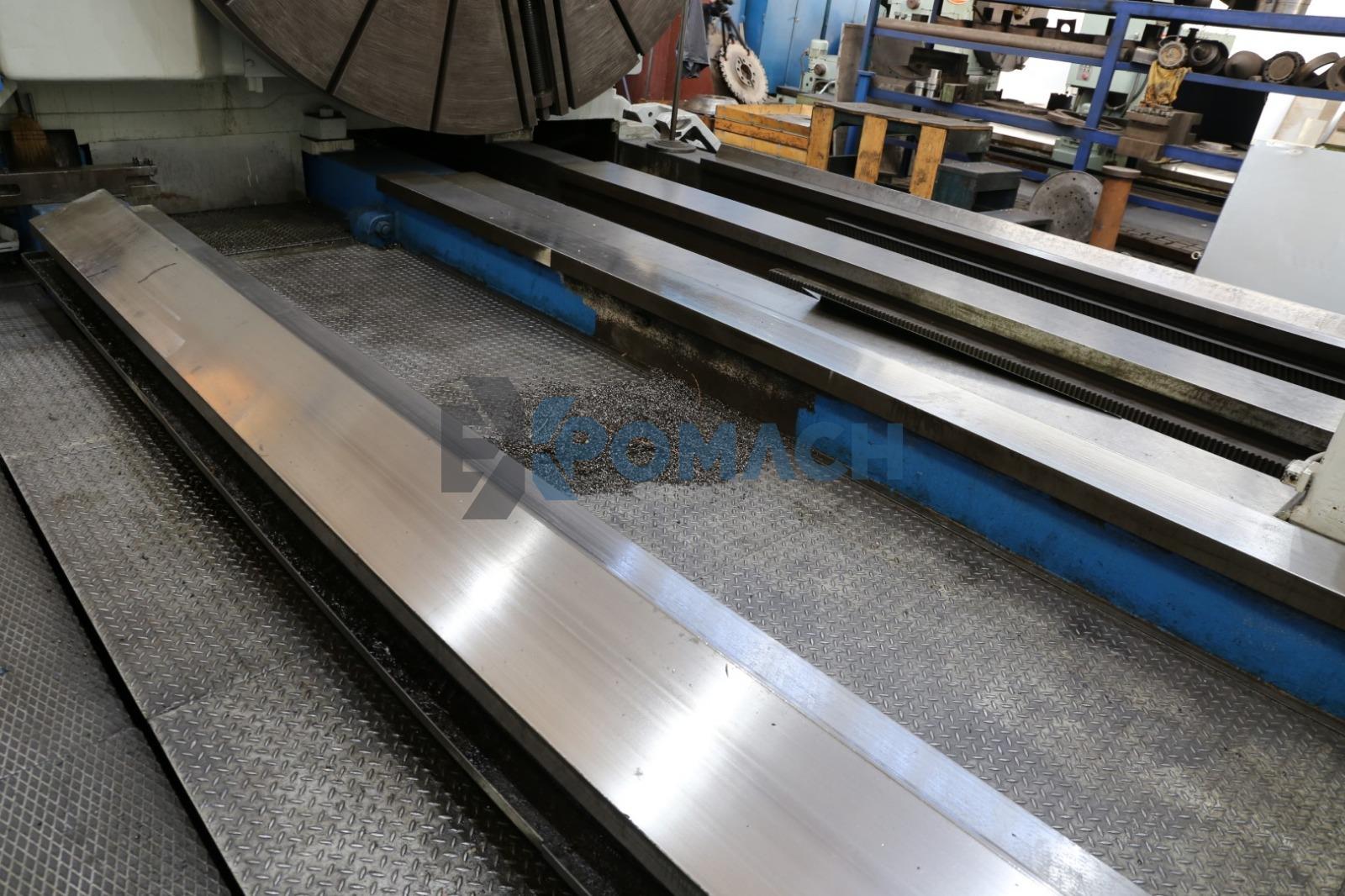

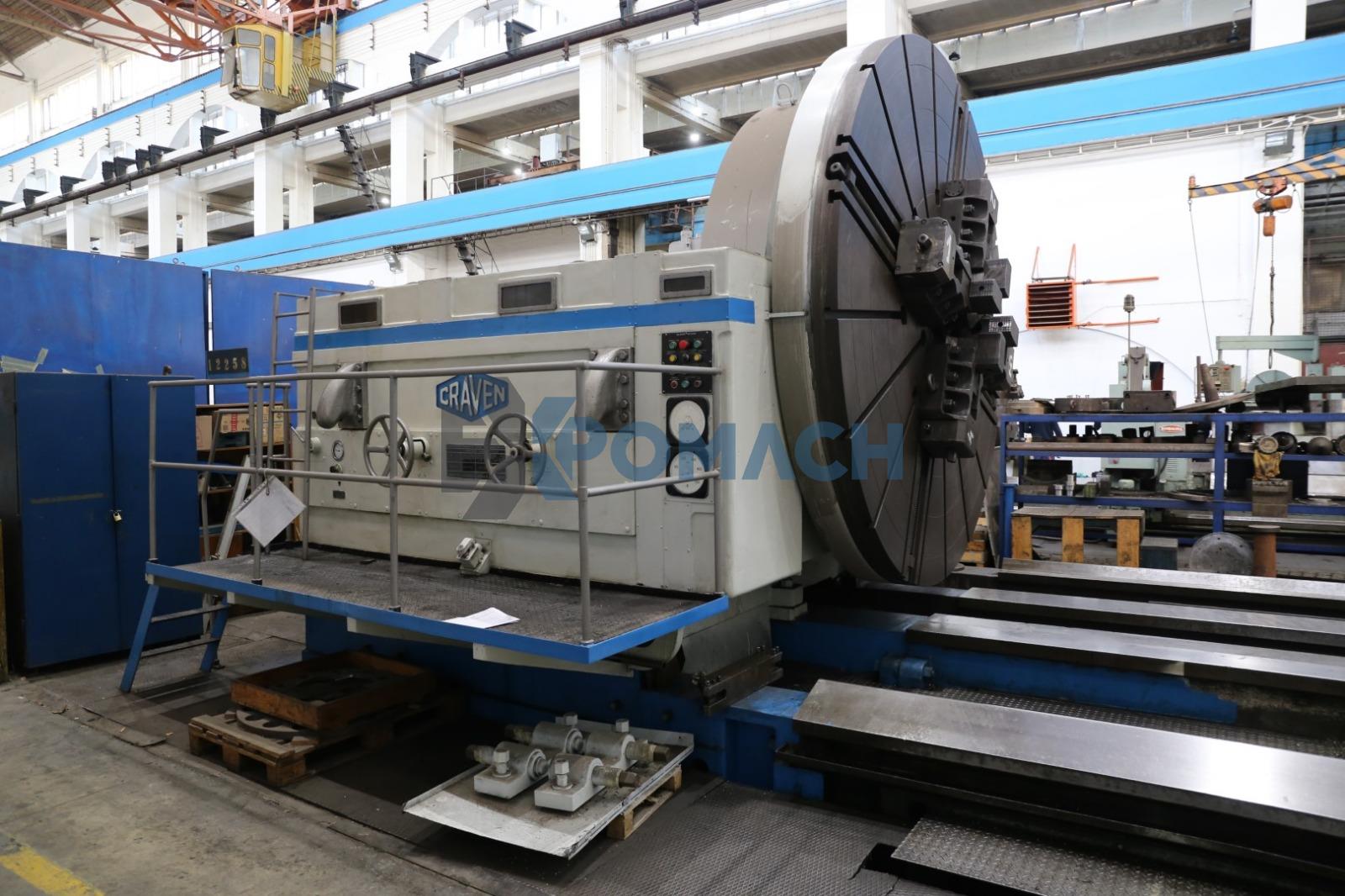

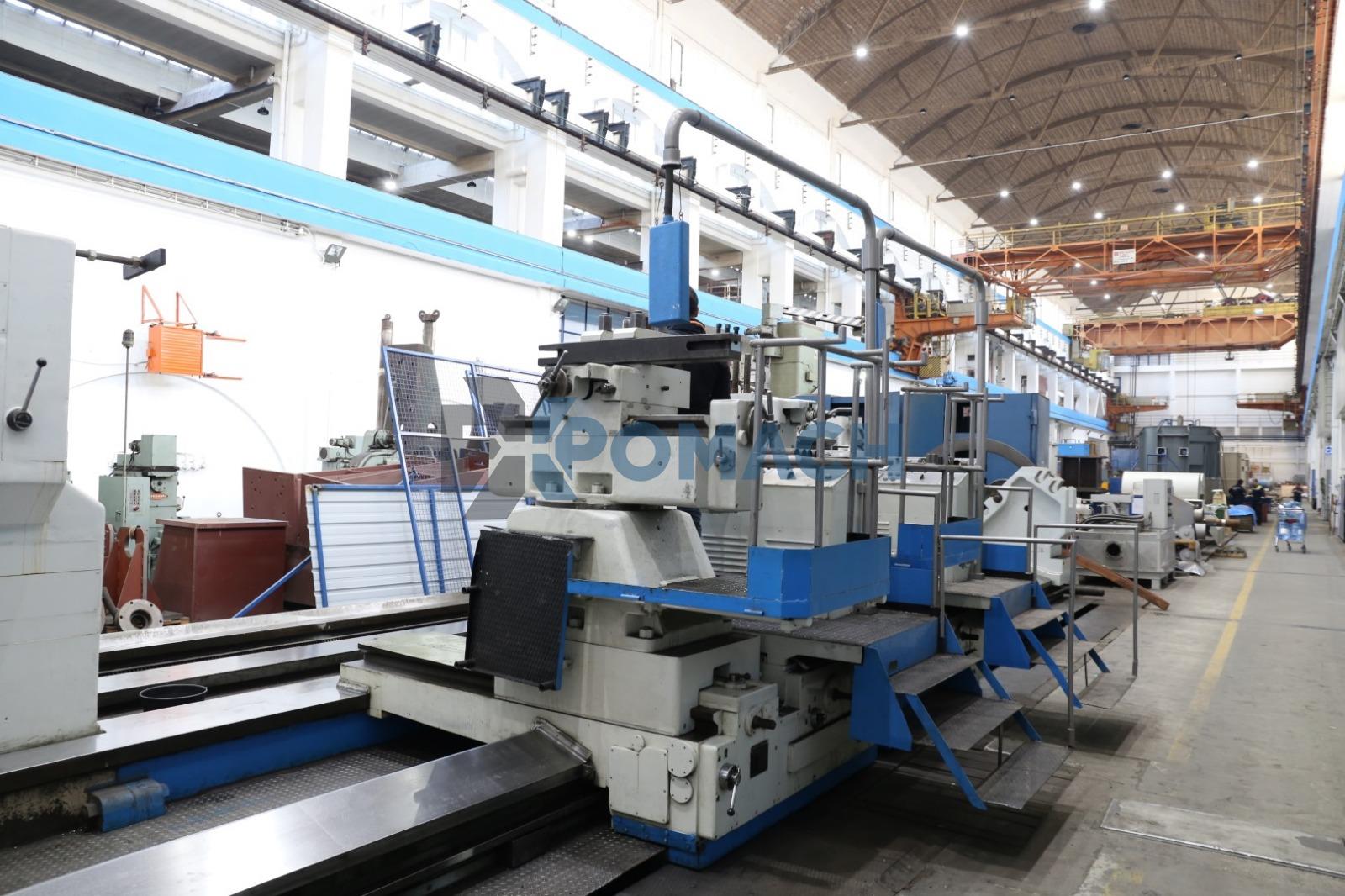

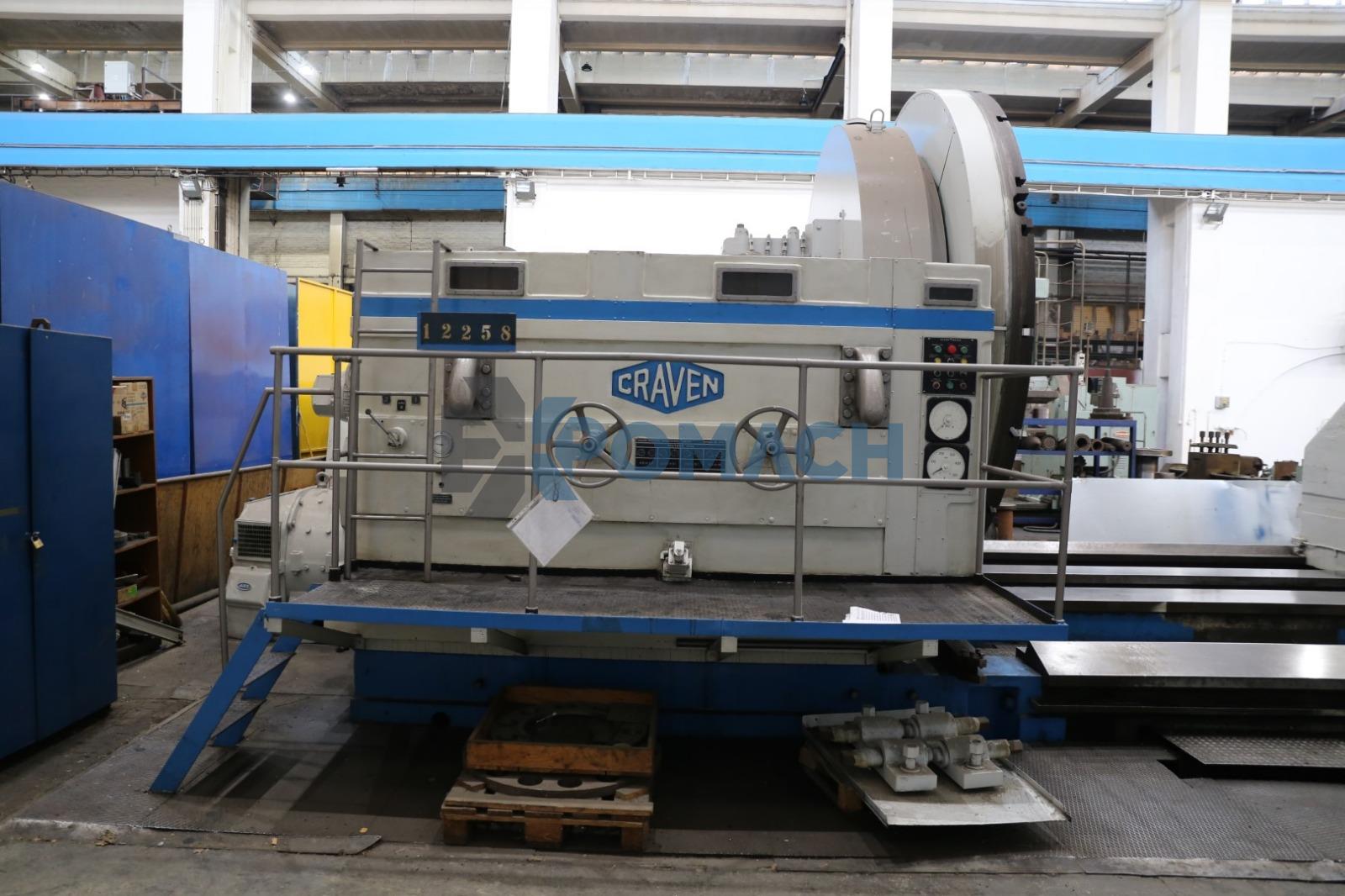

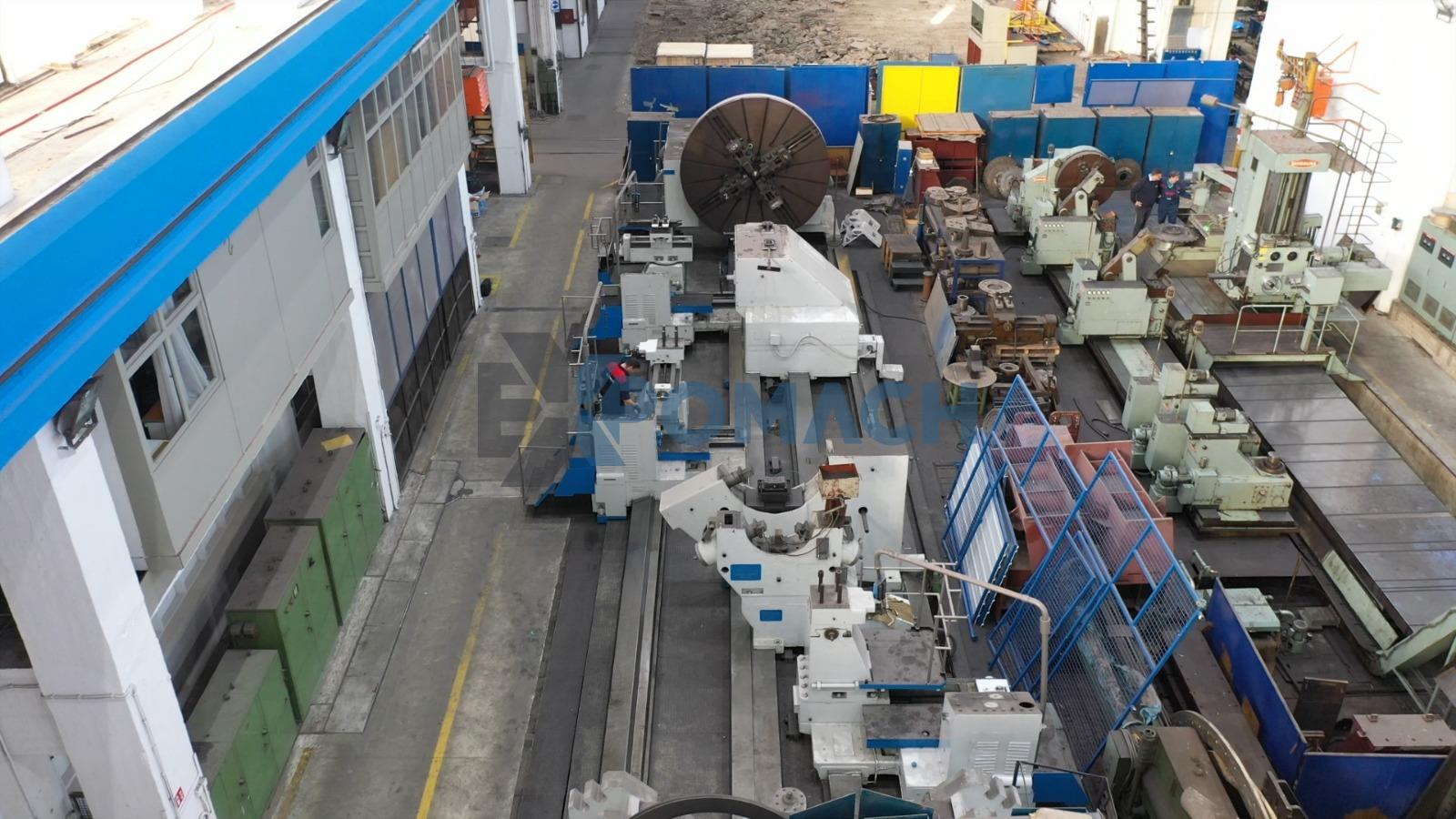

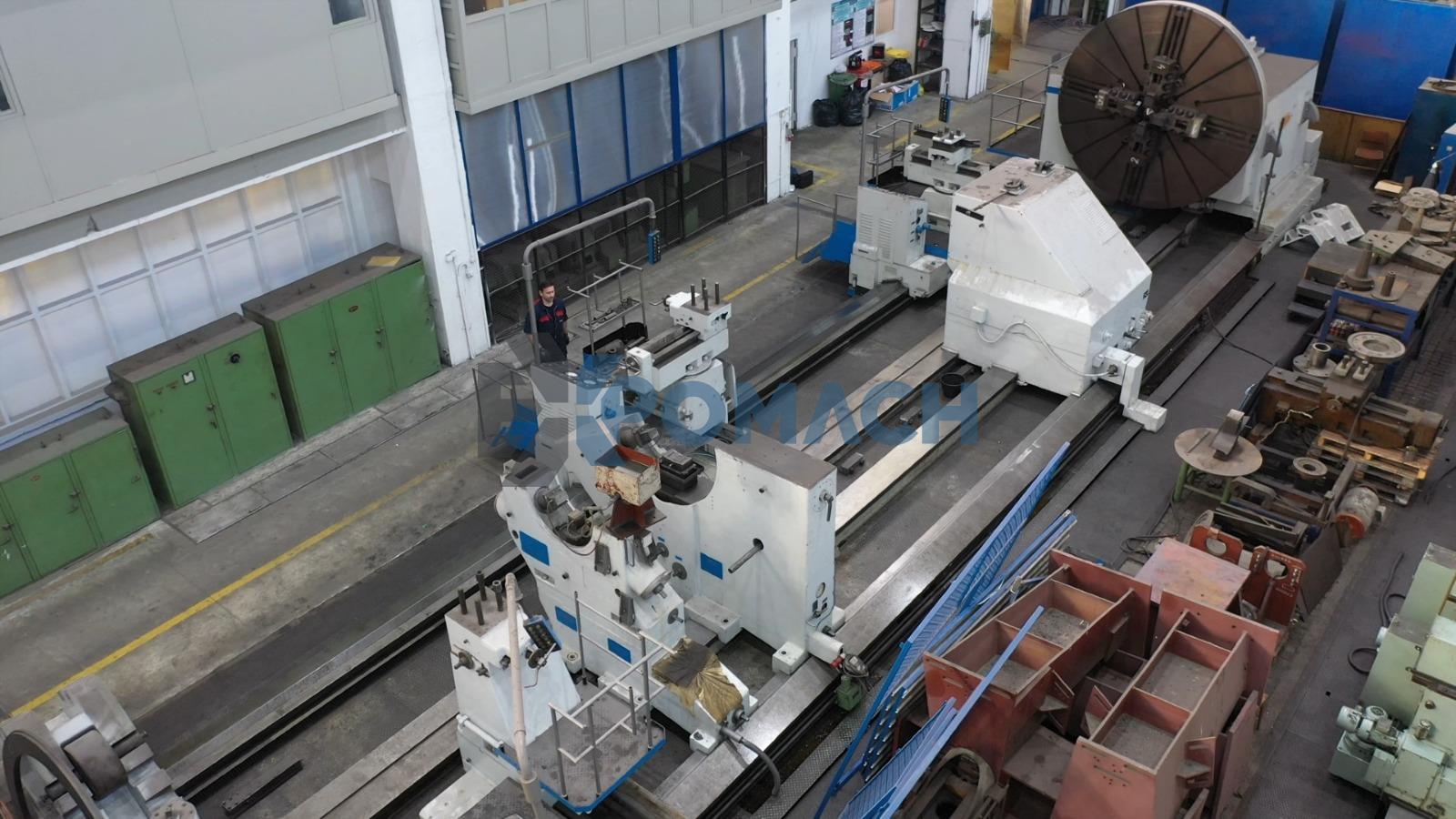

Specifications Lathe for sale: Heavy duty lathe Craven 3684 x 15000 mm. All details of this offer (condition, price, delivery terms) will be received from our manager by clicking "Request Price". We can also help with finding other equipment for your needs. Height of Centers 1842 mm Maximum Distance between Centers 15240 mm Overall lenght of Bed 21457 mm Width over Bed Shears 4267 mm The maximum load on Centers 100 tons Angle of Centers 90 ° Maximum Swing in Diameter over Saddles 3251 mm Number of Front Saddles Two Number of Rear Saddles One Number of Auxiliary Screwcutting Slides One Number of Auxiliary Milling Attachments One Number of Auxiliary Grinding Attachments One Headstock Front Spindle Bearing 610 x 1016 mm Headstock Rear Spindle Bearing 379 x 610 mm Headstock Faceplate Diameter 3353 mm Maximum Gripping Diameter Externally 3099 mm Minimum Gripping Diameter Externally 216 mm Maximum Gipping Diameter Internally 3518 mm Minimum Gripping Diameter Internally 635 mm Maximum Capacity of open type Pad Stay 1400 mm Minimum Capacity of open type Pad Stay 600 mm

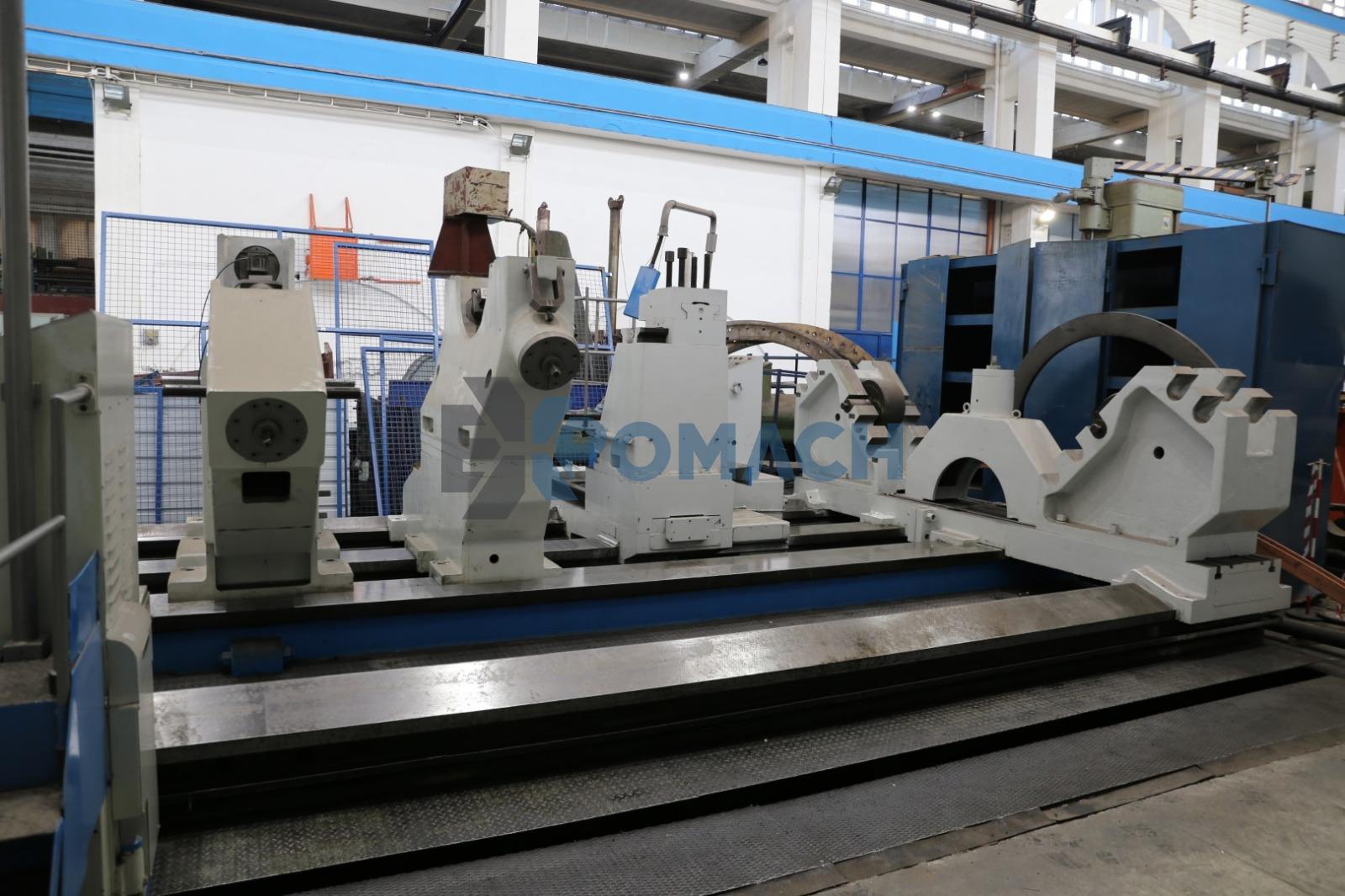

Description Maximum Load in open type Pad Stay: 75 tons Maximum Capacity of Stationary Stay: 813 mm Minimum Capacity of Stationary Stay: 381 mm Maximum Load in Stationary Stay: 50 tons Maximum Capacity of Open Type Roller Stay: 2540 mm Minimum Capacity of Open Type Roller Stay: 508 mm Maximum Load in Open Type Roller Stay: 80 tons Number of Headstock Spindle Speed Changes: Four Spindle Speeds (four infinitely varible ranges) in r.p.m .: 0.8 to 2.4 2.02 to 6.1 5.2 to 15.7 13.3 to 40 Maximum Horse power Available at: 8 r.p.m (approx) and upwards Number of Feed changes for Front and Rear Saddles: Six Sliding Feeds (infinitely variable per minute): 0.8 to 387 mm Surface Feeds (infinitely variable per minute): 0.4 to 192 mm Front Top Slides Feeds (infinitely variable per minute): 3/4 Surfacing Feed Screwcutting with Selsyn Rest: 1 to 25 mm pitch Traverse of Front Top Slides: 813 mm Traverse of Rear Top Slide: 229 mm Traverse of Top Slide on Screwcutting Rest: 1010 mm AUXILIARY MILLING ATTACHMENT Number of Milling Spindle Speed Changes: Six Range of Milling Spuindle Speeds: 40 to 400 r.p.m. Milling Feeds (infinitely variable): Longitudinal: 0.8 to 387 mm / minute Traverse: 0.4 to 192 mm / minute Milling Feeds to top Slide (infinitely variable): 0.4 to 192 mm / minute AUXILIARY GRINDING ATTACHMENT Maximum Diameter to be Ground: 2388 mm Grinding Spindle Speed: 800 r.p.m. Size of Grinding Whell: 24 ″ dia. x 10 ″ bore. x 2 ″ wid Periphery Speed at 24 ″ dia .: 5027 ft / min. ELECTRIC MOTORS Main Driving Motor: 100 H.P. at 900 to 300 r.p.m. Tailstock Traverse Motor: 5 H.P. at 1400 r.p.m. Tailstock Locking Motor: 3 H.P. at 1400 r.p.m. Saddle Feed and Quick Traverse Motors: 3 H.P. at 1500 to 500 r.p.m. (3 off) Selsyn Transmitter on Headstock: 2 ^ 1/2 H.P. Selysn Receiver motor on Screwcutting Rest: 2 ^ 1/2 H.P. Grinding Head Spindle Motor: 5.H.P. at 1400 r.p.m. Milling Head Spndle Motor: 5.H.P. at 1400 r.p.m. oil Pump Motors for Headstock & Spindle Lub .: (2 off) each 1 H.P. Oil Pump Motors for Saddle & Apron Gearing: (3 off) each 1/6 H.P. Slideway Flushing pumps: (3 off) each 1/6 H.P.
PRICE: EXWORKS TURKEY
Delivery depends on the customer's request. Please consult your EXPOMACH agent for more information.
